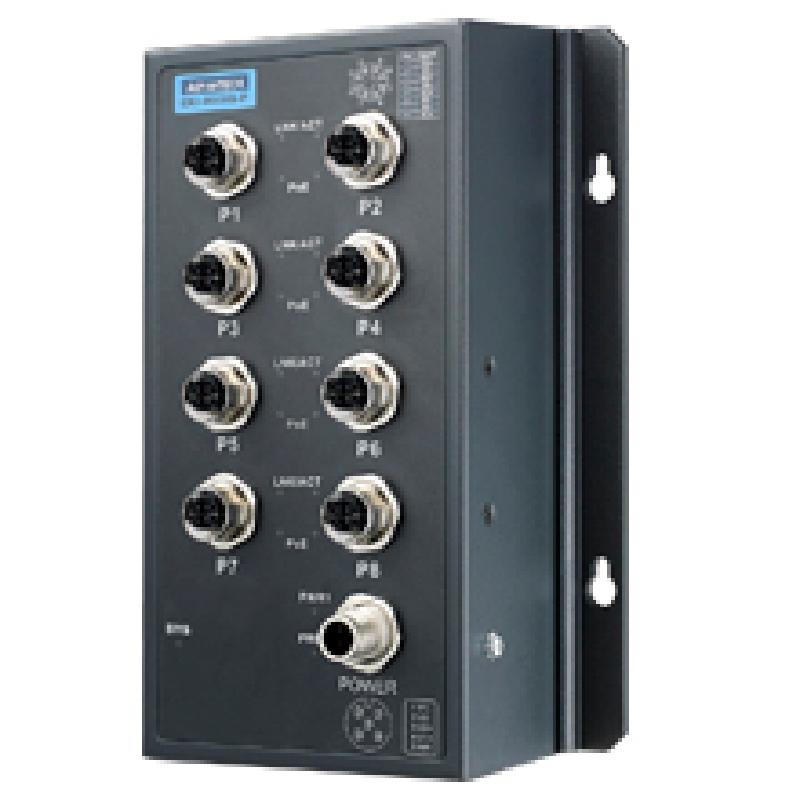

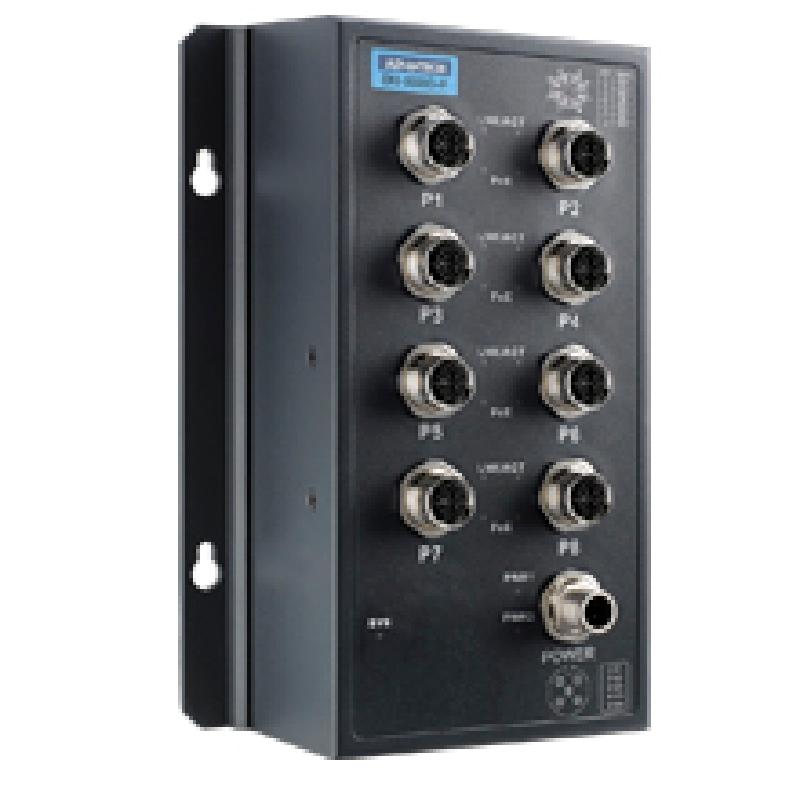

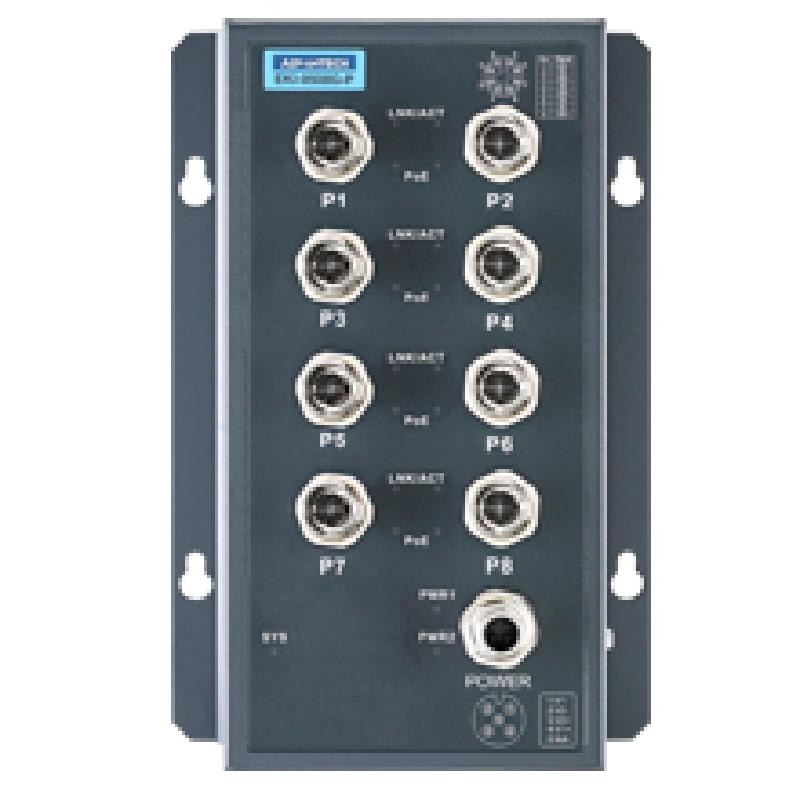

研華EKI-9508G-PL EN50155 Unmanaged PoE Ethernet Switch with 8GE, 24-48 VDC

• 8 x M12 X-coded 10/100/1000Mbps PoE ports
• Complies with EN50155 & EN50121-3-2
• Operating temperature range -40 ~ 70°C
• Operating Voltage: 16.8~60 VDC
• 8-port PoE support IEEE802.3 at/af
• M12 connector with rugged housing

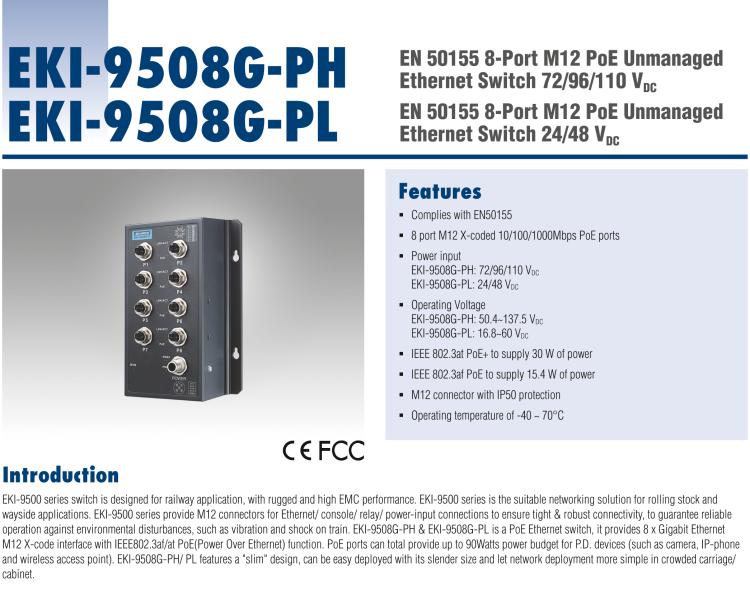

• The EKI-9500 series switch is designed for railway application with rugged and high EMC performance and is suitable for networking solution for rolling stock and wayside applications. The EKI-9500 series provides M12 connectors for Ethernet/ console/ relay/ power-input connections to ensure tight & robust connectivity, so as to guarantee reliable operation against environmental disturbances such as vibration and shock on train. The EKI-9508G-PH & EKI-9508G-PL are PoE Ethernet switches that provide 8 x Gigabit Ethernet M12 X-code Port interface with IEEE802.3af/at PoE(Power Over Ethernet) function. The PoE ports can provide up to 90Watts power budget for P.D. devices (such as camera, IP-phone and wireless access point). EKI-9508G-PH/ PL features “slim” designs which can be easy deployed with its slender size and make the network deployment easier in crowded carriage/ cabinet.
