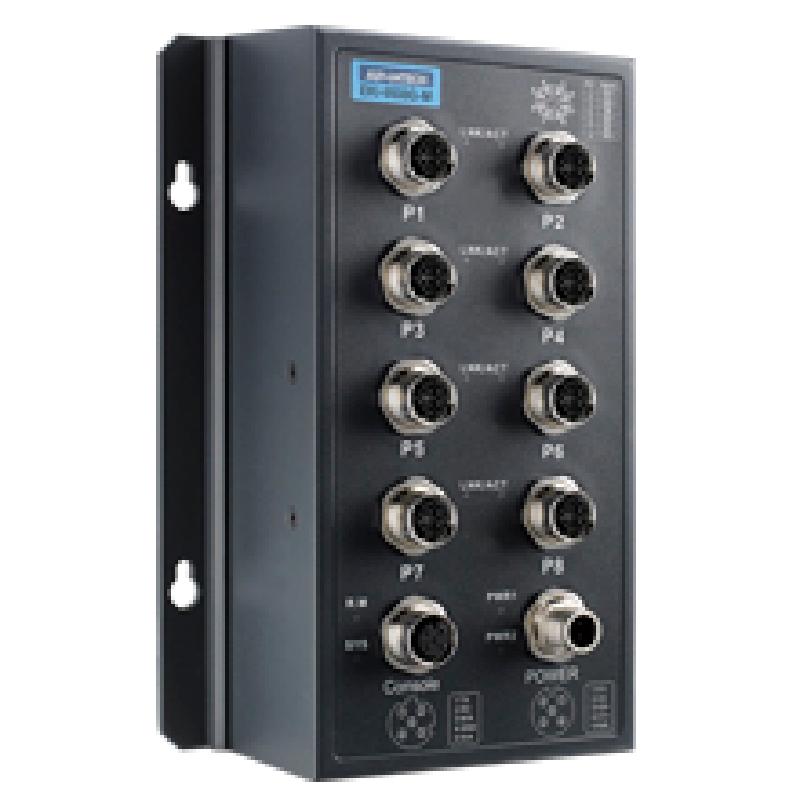

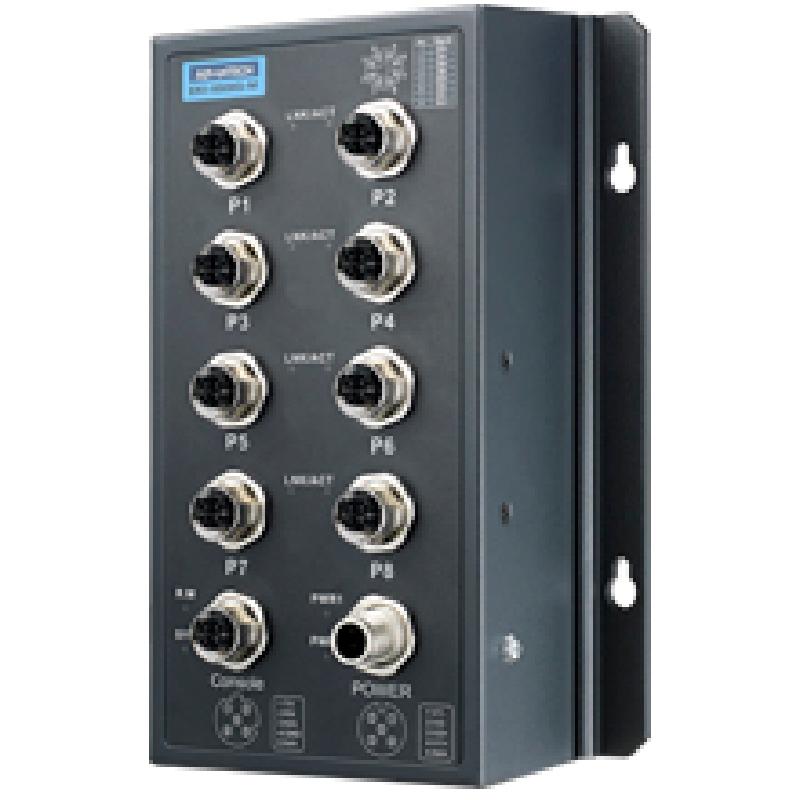

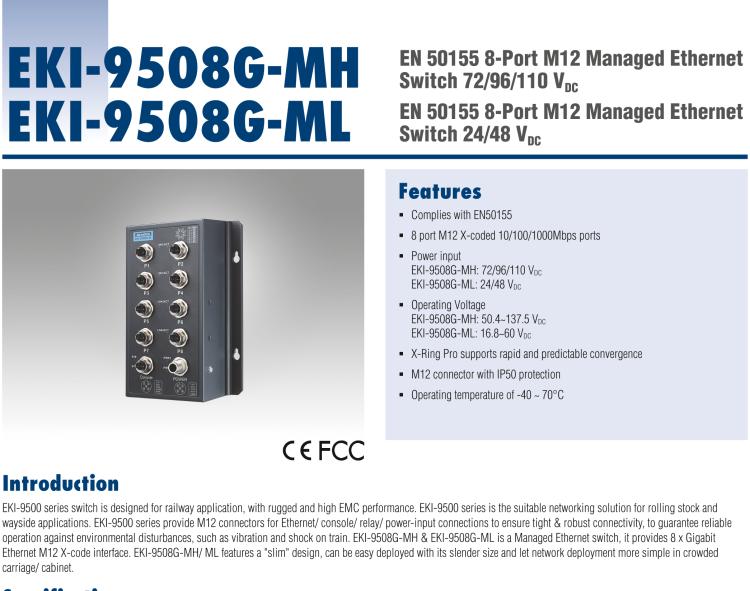

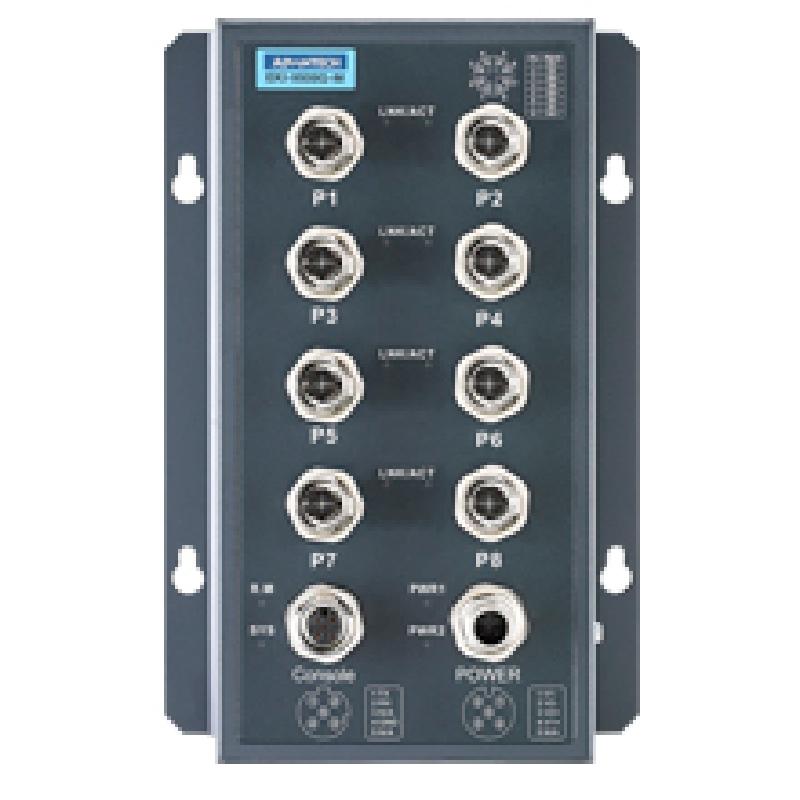

研華EKI-9508G-ML EN50155 Managed Ethernet Switch with 8GE, 24-48 VDC

• 8 M12 X-coded 10/100/1000Mbps ports
• Complies with EN50155 & EN50121-3-2
• Operating temperature range -40 ~ 70°C
• Operating Voltage: 16.8~60 VDC
• X-Ring Pro supports rapid and predictable convergence
• M12 connector with rugged housing
• The EKI-9500 series railway Ethernet switch is designed for railway applications with rugged and high EMC performance and is suitable for networking solution for rolling stock and wayside applications. The EKI-9500 series provides M12 connectors for Ethernet/ console/ relay/ power-input connections to ensure tight & robust connectivity so as to guarantee reliable operation against environmental disturbances such as vibration and shock on train. The EKI-9508G-MH & EKI-9508G-ML are managed Ethernet switches that provide 8 x Gigabit Ethernet M12 X-code port interface. The EKI-9508G-MH/ ML features “slim” designs which can be easy deployed with its slender size and make the network deployment easier in crowded carriage/ cabinet.
