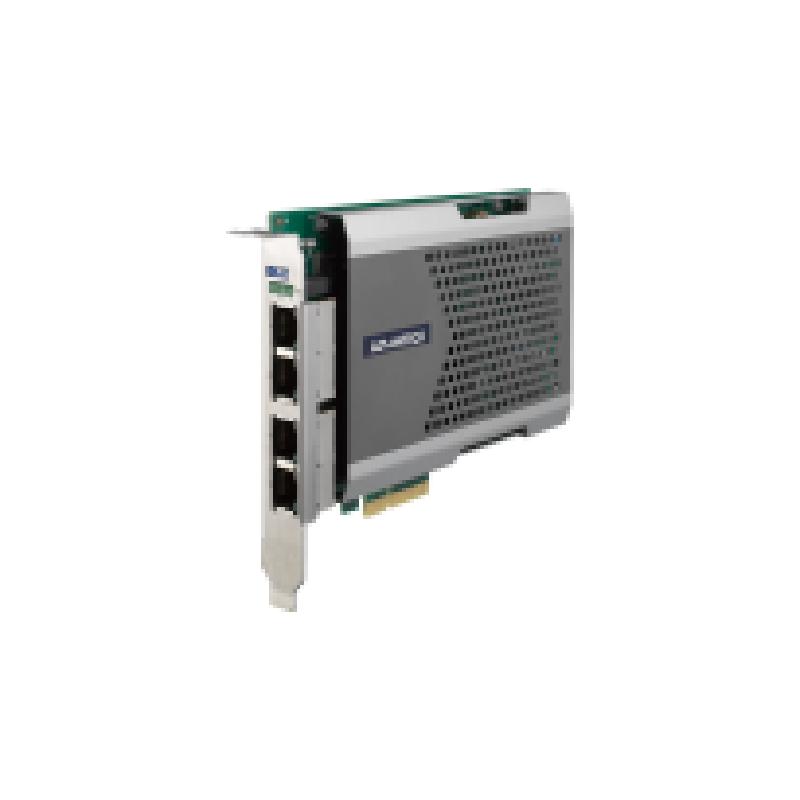

研華PCIE-1674E-BE 4-ports PCI Express PoE+ GigE Vision Frame Grab

• Intel I350 1GbE Ethernet Controller
• PCI Express Gen2 x4 compliant
• Compliance with IEEE 802.3at-2009 (PoE+), up to 2 ports delivers up to 25.4 W of power via power jet supply and protect by recoverable eFuse
• Powered Device (PD) auto detection and classification
• Supports IEEE 802.3u Auto-Negotiation
• Supports Jumbo frame (9,500 byte) and link aggregation
• Supports IEEE 802.3, IEEE 802.3u, IEEE802.3ab,IEEE802.3x, IEEE802.3af, IEEE802.3at
• PoE on/off control by Hardware switch
• Protect shell reduce the risk of damage from system installation
• The PCIE-1674E-BE is ideally designed for scientific research instrumentations, Medical Research Instrumentations, and Machine Vision Systems, which can also benefit from a scalable Gigabit backbone construction with Power-over-Ethernet support.
