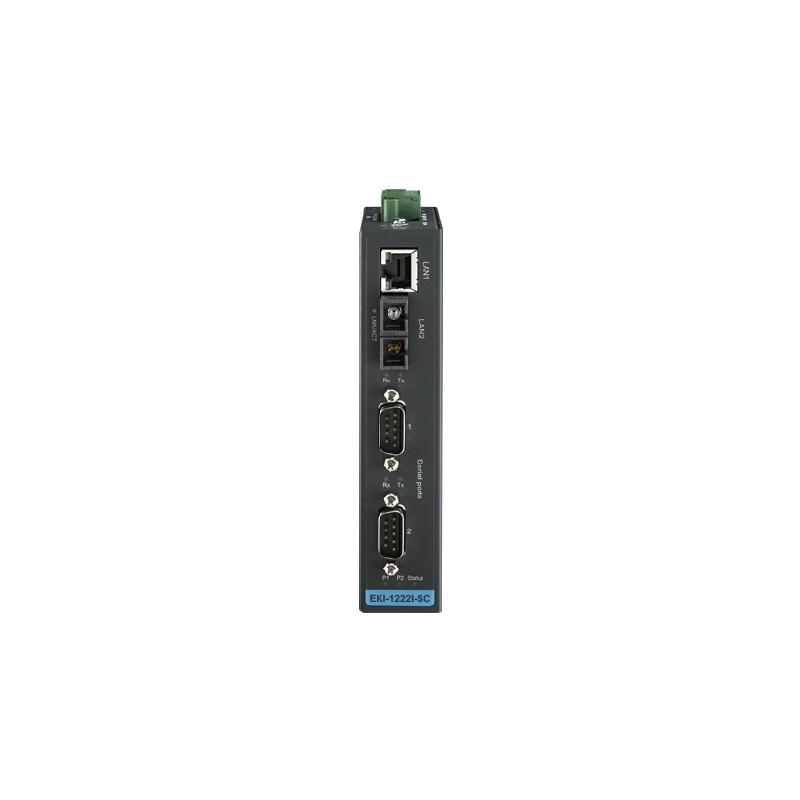

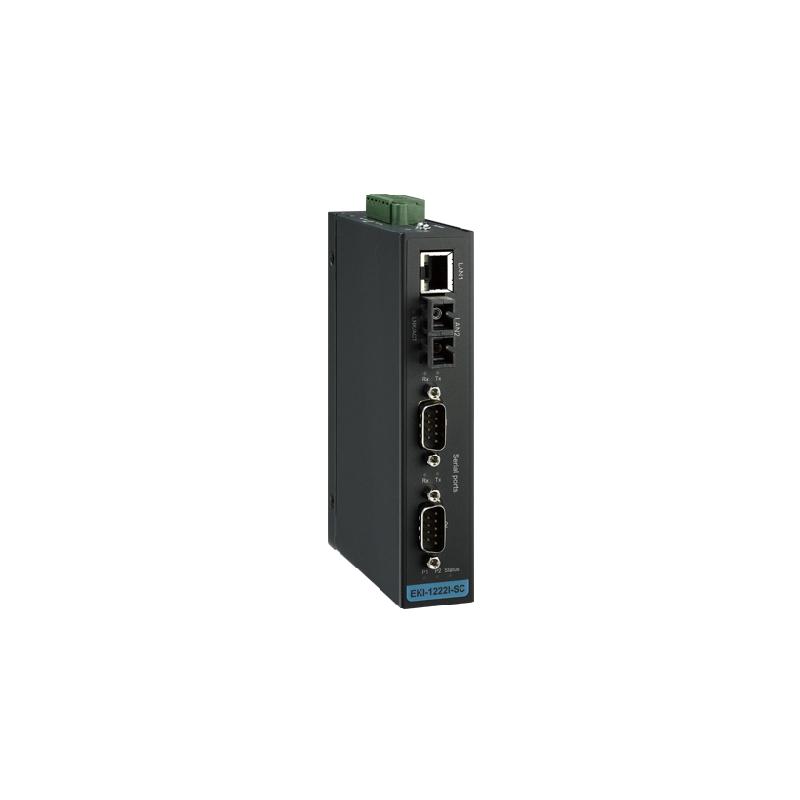

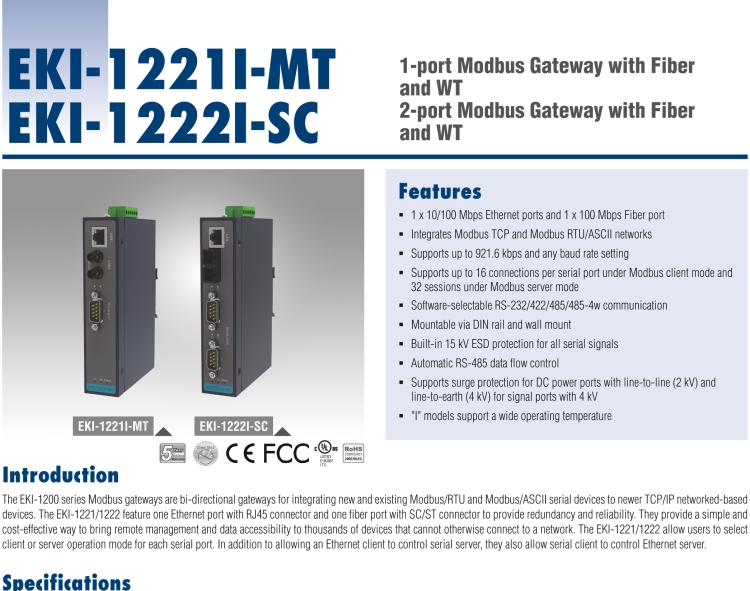

研華EKI-1222I-SC 2-Port Modbus Gateway, Fiber, Wide Temperature

• 1 x 10/100 Mbps Ethernet ports and 1 x 100 Mbps Fiber port
• Integrates Modbus TCP and Modbus RTU/ASCII networks
• Supports up to 921.6 kbps and any baud rate setting
• Supports up to 16 connections per serial port under Modbus client mode and 32 sessions under Modbus server mode
• Software-selectable RS-232/422/485/485-4w communication
• Mountable via DIN rail and wall mount
• Built-in 15 kV ESD protection for all serial signals
• Automatic RS-485 data flow control
• The EKI-1200 series Modbus gateways are bi-directional gateways for integrating new/ existing Modbus/RTU & Modbus/ASCII serial devices to newer TCP/IP networked-based devices, featuring one Ethernet port with RJ45 connector and one fiber port with SC/ST connector to provide redundancy & reliability.
