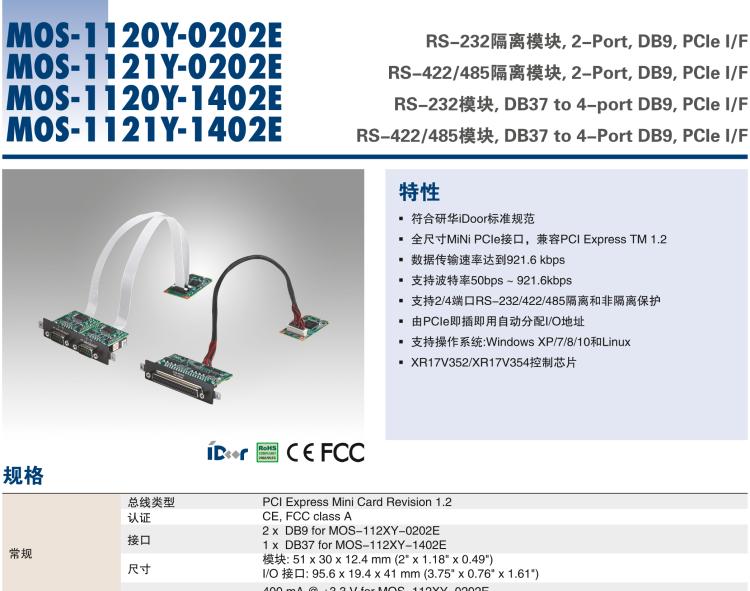

研華MOS-1121Y-1402E Non-Isolated RS-422/485, DB37 to 4-Port DB9, PCIe I/F

• Meets Advantech Standard iDoor Technology
• PCI Express? Mini Card Specification Revision 1.2 compliant
• Speeds up to 921.6 kbps for extremely fast data transmission
• Supports any baud rate setting (50bps~921.6kbps)
• Supports both Isolated & Non-Isolated Protection with 2/4 Ports RS-232/422/485
• I/O address automatically assigned by PCIe plug & play
• Operating systems supported: Windows XP/7/8/10, and Linux
• XR17V352/XR17V354 UART with 256-byte FIFOs

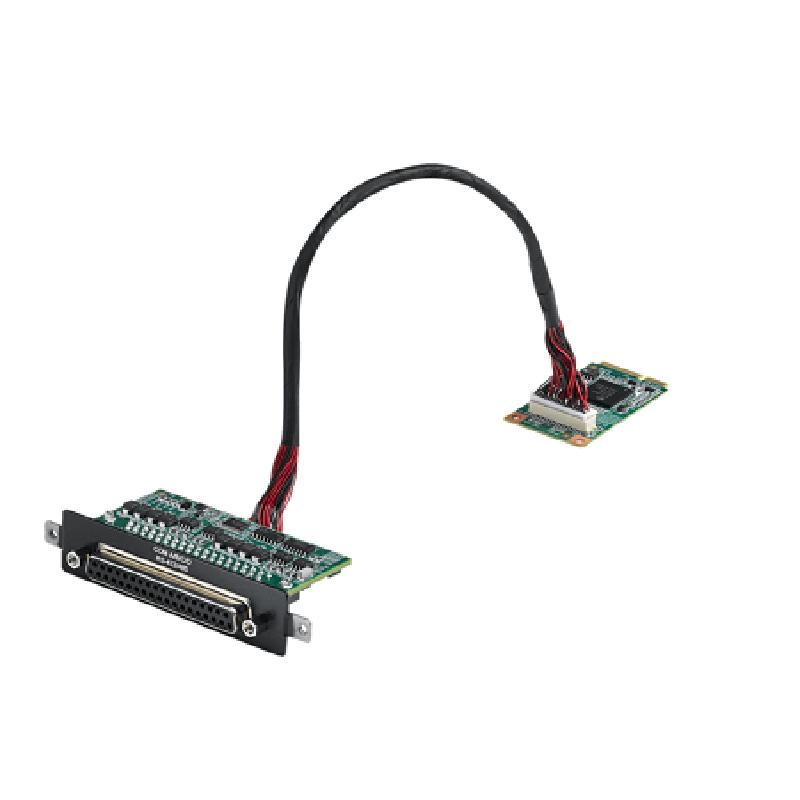

• Non-Isolated RS-422/485, DB37 to 4-Port DB9, PCIe I/F
