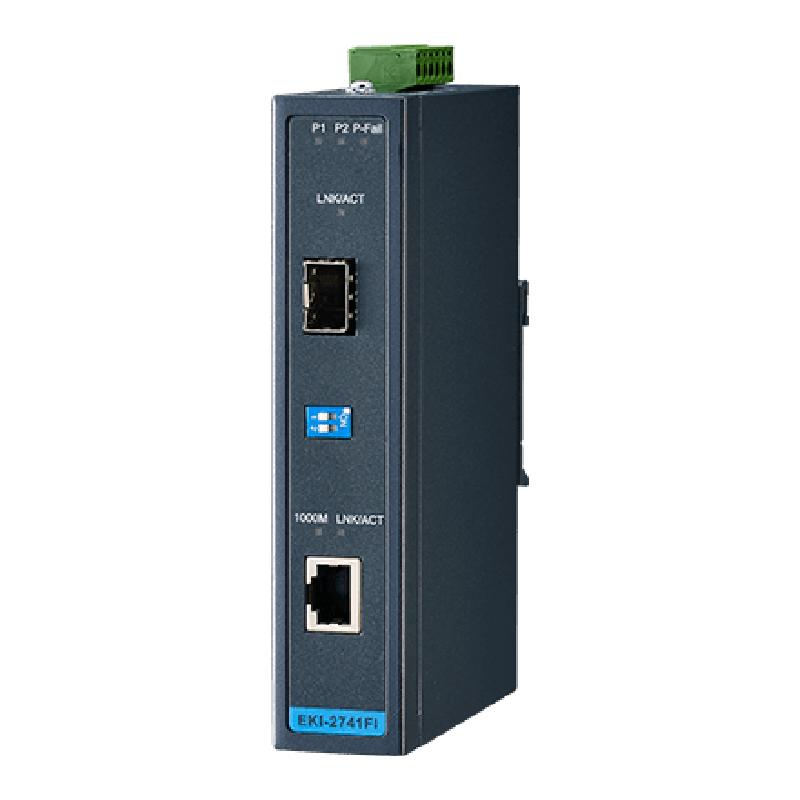

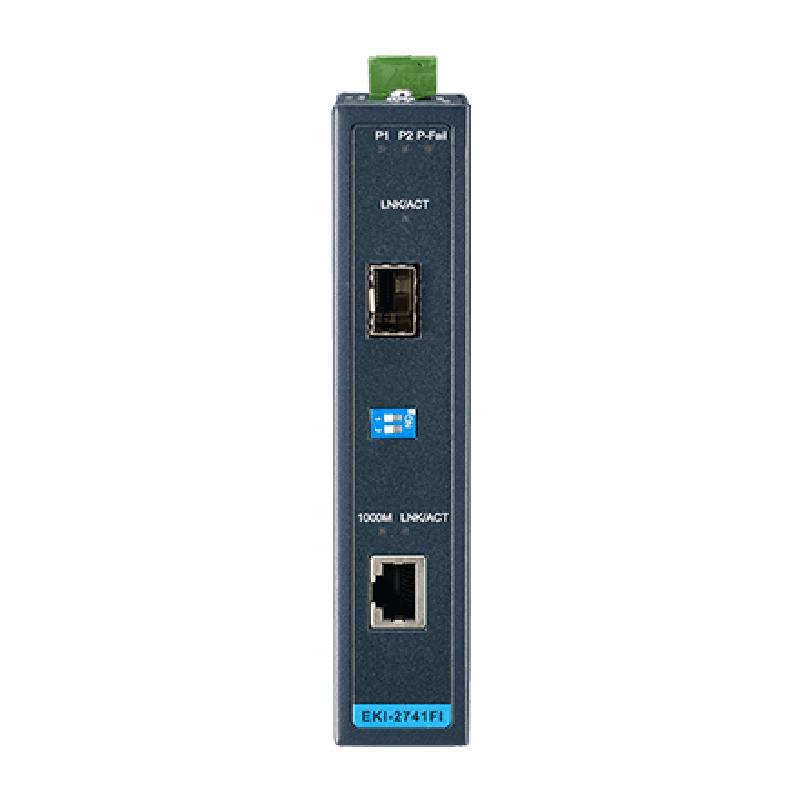

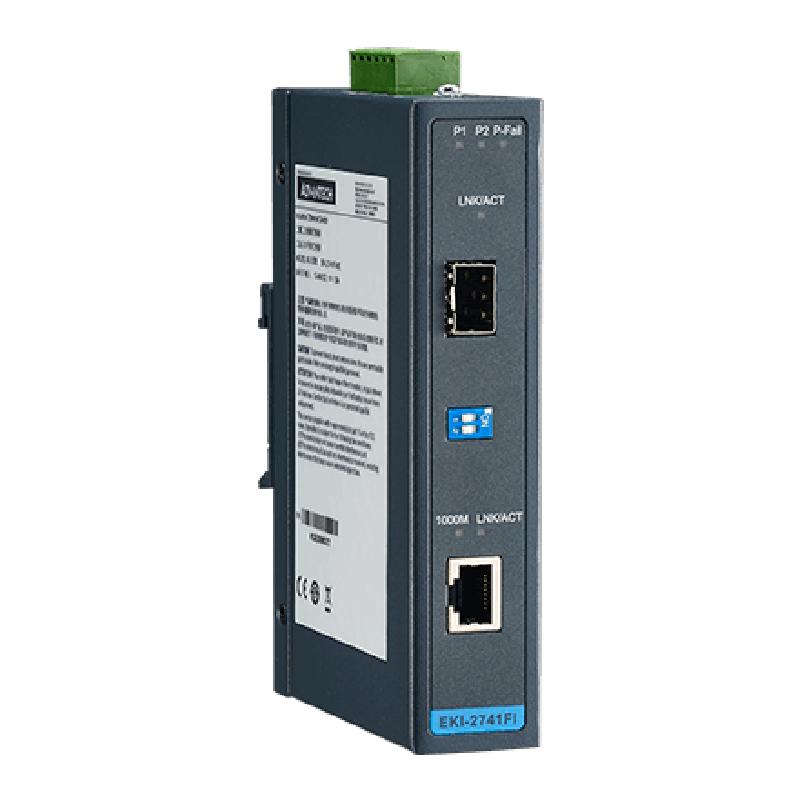

研華EKI-2741FI Hardened Media Converter, 1000Mbps, SFP

• Provides 1 x 1000 Mbps Ethernet port with RJ45 connector
• Provides 1 x 1000 Mbps fiber port with SC or SFP mini-GBIC) type connector for 1000Base-SX/LX device
• Provides DIP switch for full/half duplex setting
• Supports MDI/MDI-X auto crossover
• Supports Auto-Negotiation
• Supports redundant 12 ~ 48 VDC power input
• Provides flexible mounting: DIN-rail and Wall mount
• Provides Link Fault Pass-through (LFP)
• Jumbo Frame: 9K bytes

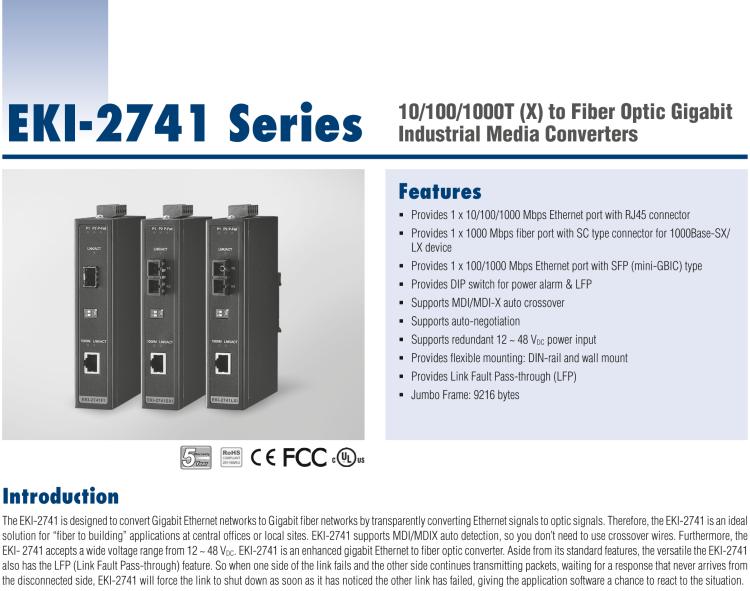

• The EKI-2741 is designed to convert Gigabit Ethernet networks to Gigabit fiber networks by transparently converting Ethernet sig nals to optic signals. Therefore, the EKI-2741 is an ideal solution for “fiber to building” applications at central offices or local sites. EKI-2741 supports MDI/MDIX auto detection, so yo u don’t need to use crossover wires. Furthermore, the EKI-2741 accepts a wide voltage range from 12 ~ 48 V DC . Besides, it also provides 3,000 V DC  surge (EFT) protection against over-voltage, so it is suitable for harsh operating environments. EKI-2741 is an enhanced gigabit Ethernet to fiber optic converter. Aside from its standard features, the versatile the EKI-2741 also has the LFP (Link Fault Pass-through) feature. When one side of the link fails, the other side continues transmitting packets, and waiting for a response that never arrives from the disconnected side. EKI-2741 will force the link to shut down as soon as noticed that the other link has failed, giving the application software a chance to react to the situation.
