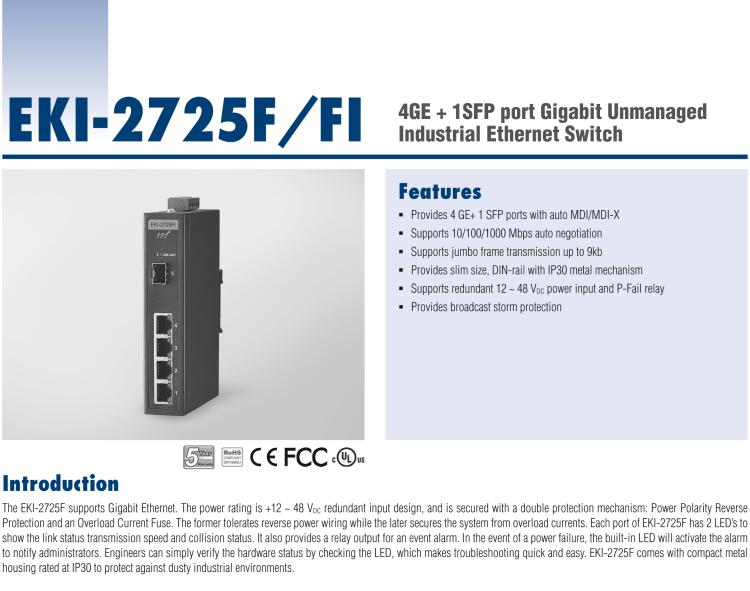

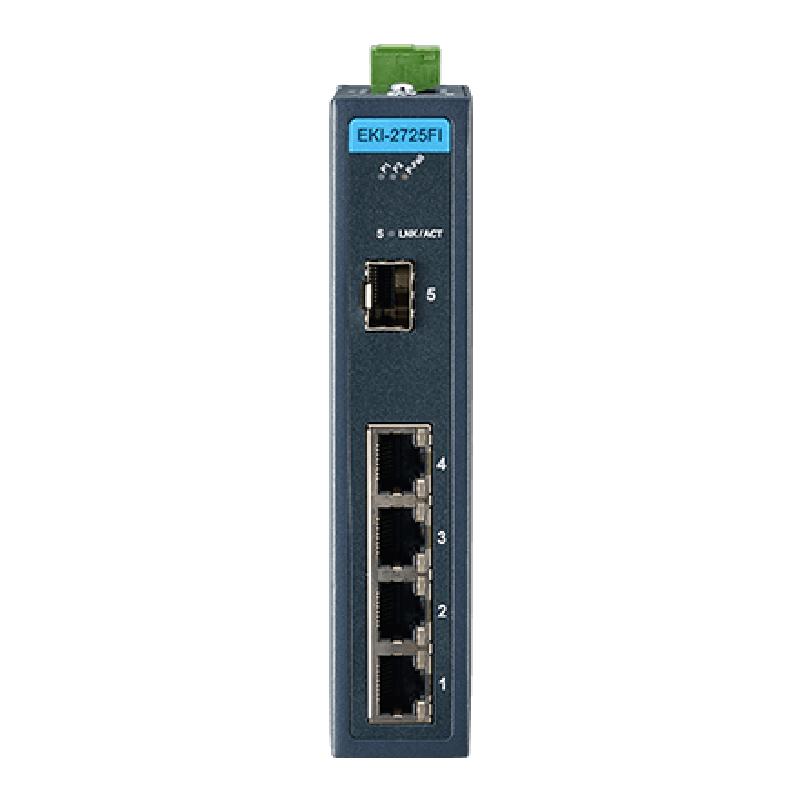

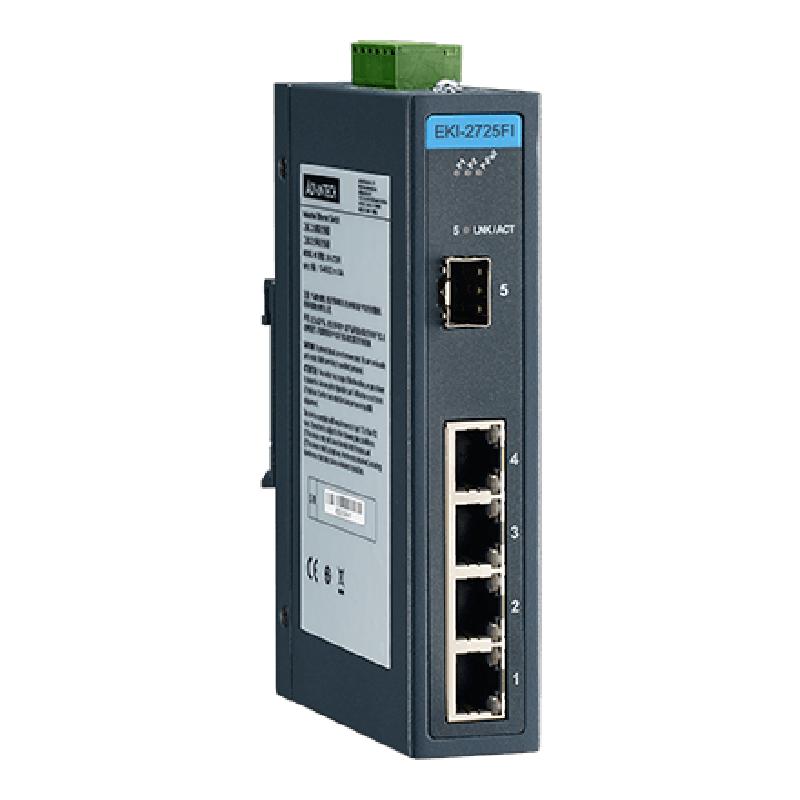

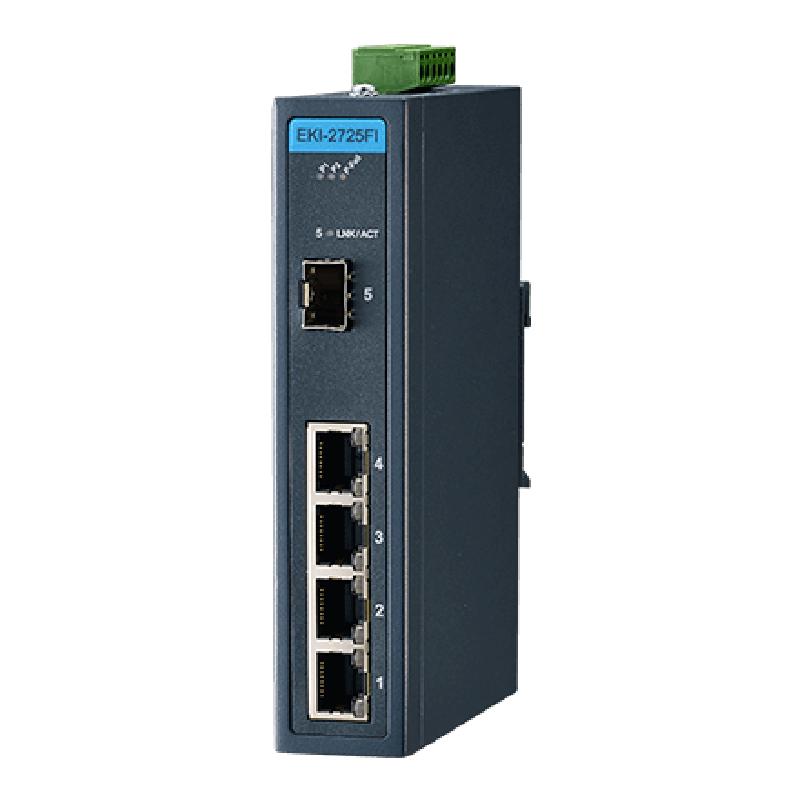

研華EKI-2725FI 4GE+1G SFP Unmanaged Ethernet Switch, -40~75℃

• Provides 4 GE+ 1 SFP ports with auto MDI/MDI-X
• Supports 10/100/1000 Mbps auto negotiation
• Supports jumbo frame transmission up to 9kb
• Provides slim size, DIN-rail with IP30 metal mechanism
• Supports redundant 12 ~ 48 VDC power input and P-Fail relay
• The EKI-2725F supports Gigabit Ethernet. The power rating is 12 ~ 48 VDC redundant input design, and is secured with a double protection mechanism: Power Polarity Reverse Protection and an Overload Current Fuse. The former tolerates reverse power wiring while the later secures the system from overload currents. As the power supply turns normal, EKI-2725F will automatically get back to a normal operating state. Each port of EKI-2725F has 2 LED’s to show the link status transmission speed and collision status. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, which makes troubleshooting quick and easy. EKI-2725F comes with compact metal housing rated at IP30 to protect against dusty industrial environments.
